Advanced

Software > Somnium VR1 Tool > Somnium VR1 Tool UI > Settings > Headset > Advanced

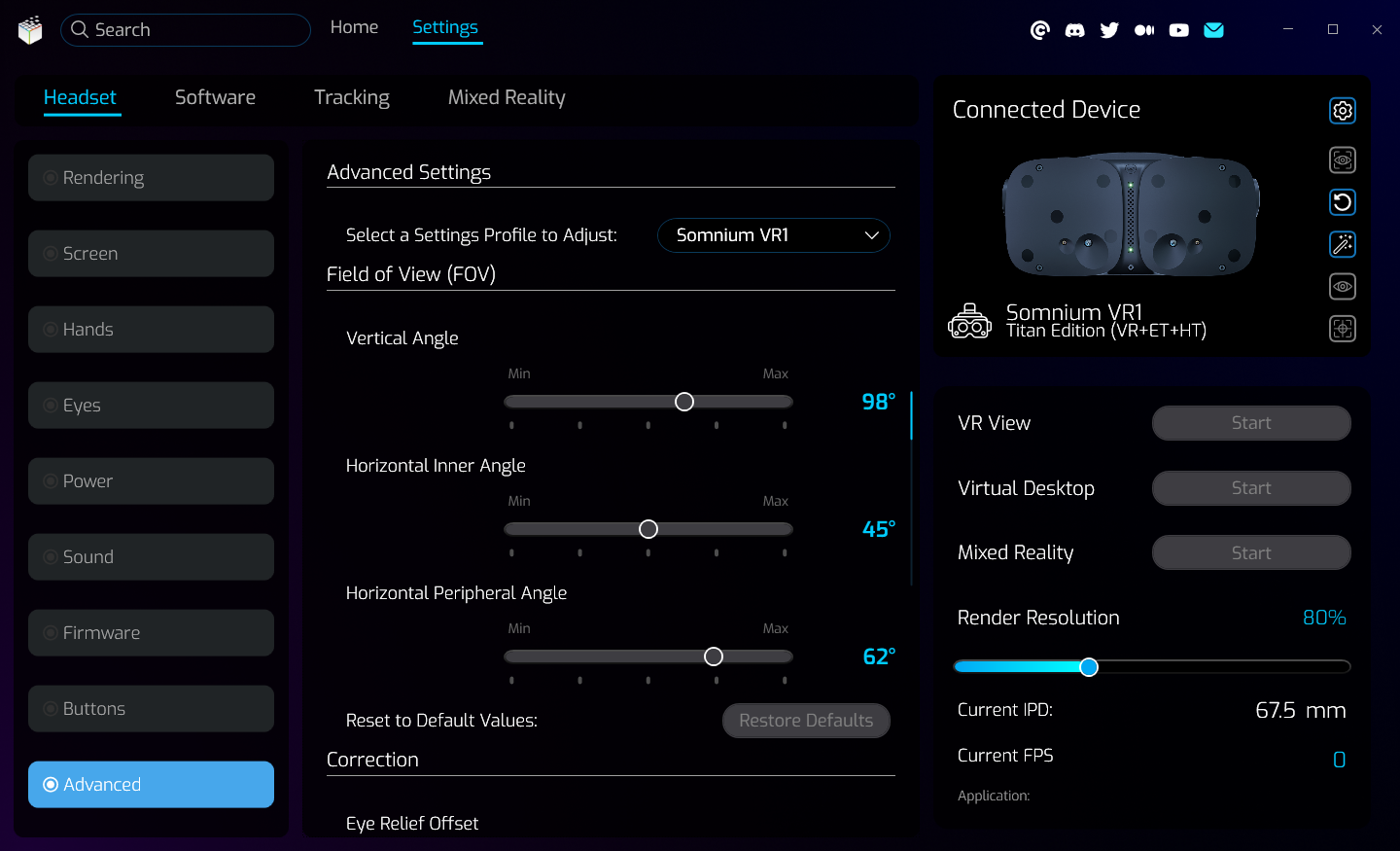

Advanced page can be used to switch to a Custom profile and change FOV values and other advanced settings.

  • Profile
    • Can be used to switch to a custom profile.
    • If Somnium VR1 profile is selected, the default profile values will be used, and you won’t be able to change the additional options on this page.

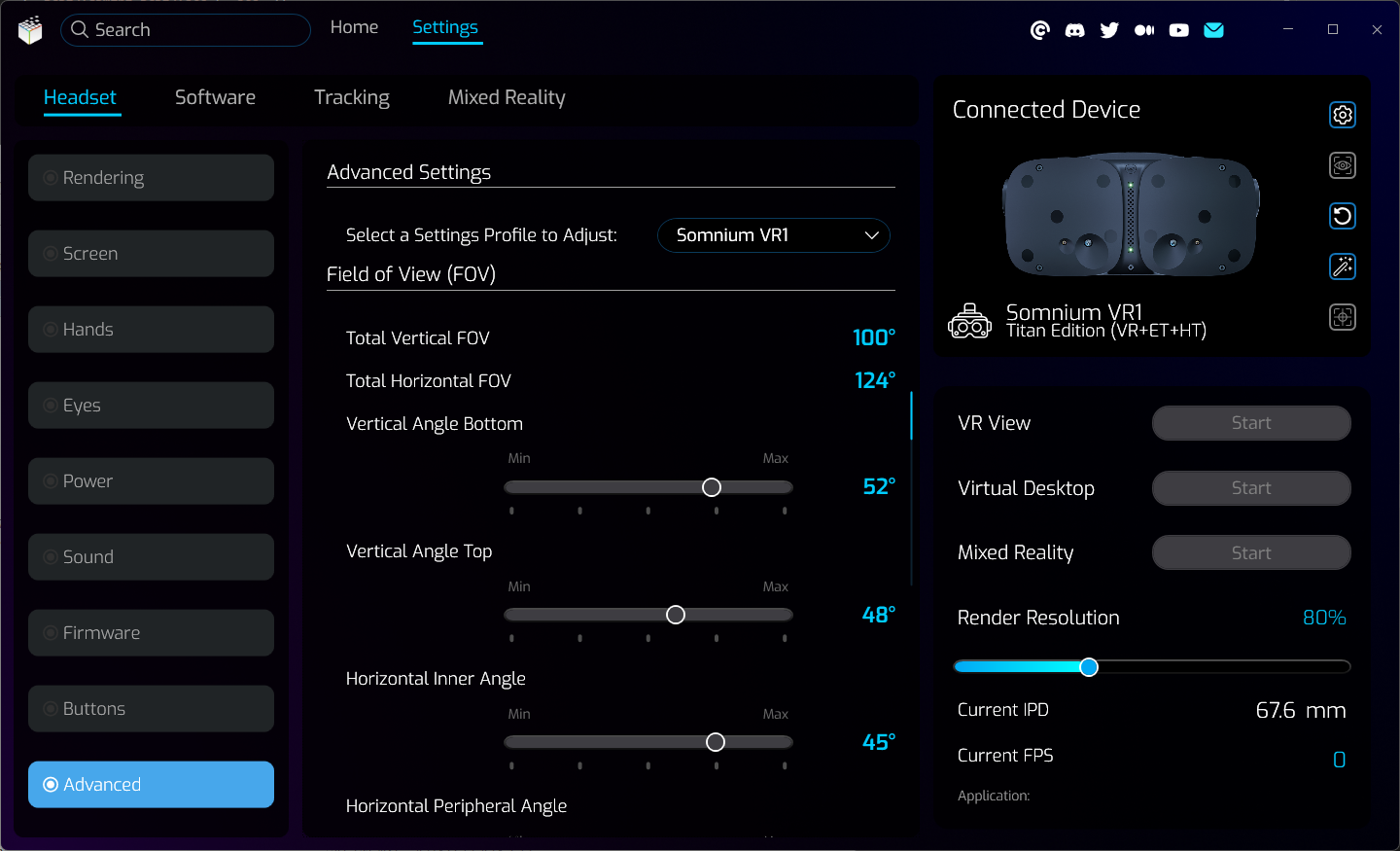

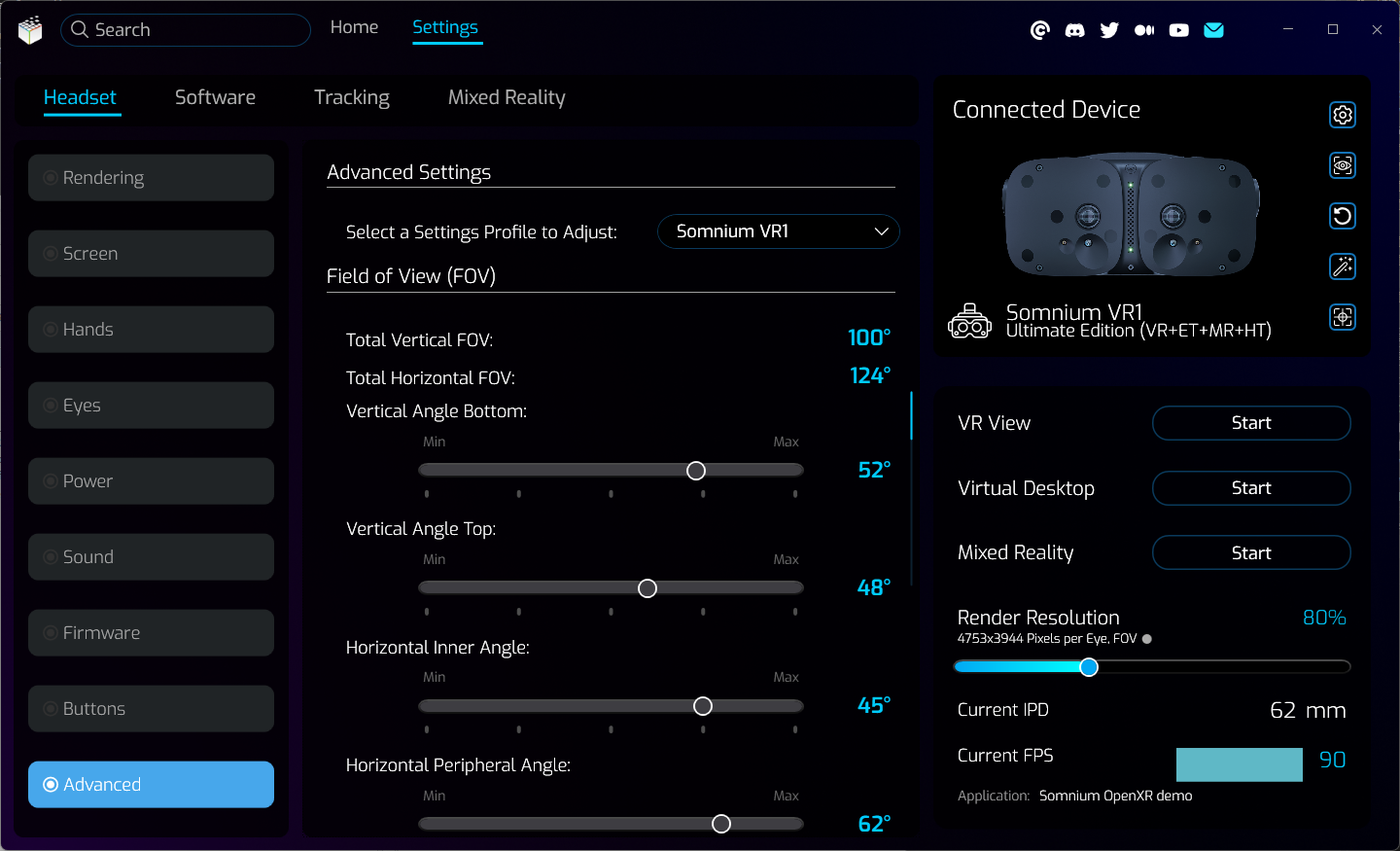

  • Field of View
    • Total Vertical FOV
      • Shows total vertical field of view (sum of bottom and top vertical angles).
    • Total Horizontal FOV
      • Shows total horizontal field of view (twice the value of horizontal peripheral angle).
    • Vertical Angle Bottom
      • Can be used to change the bottom part of vertical field of view.

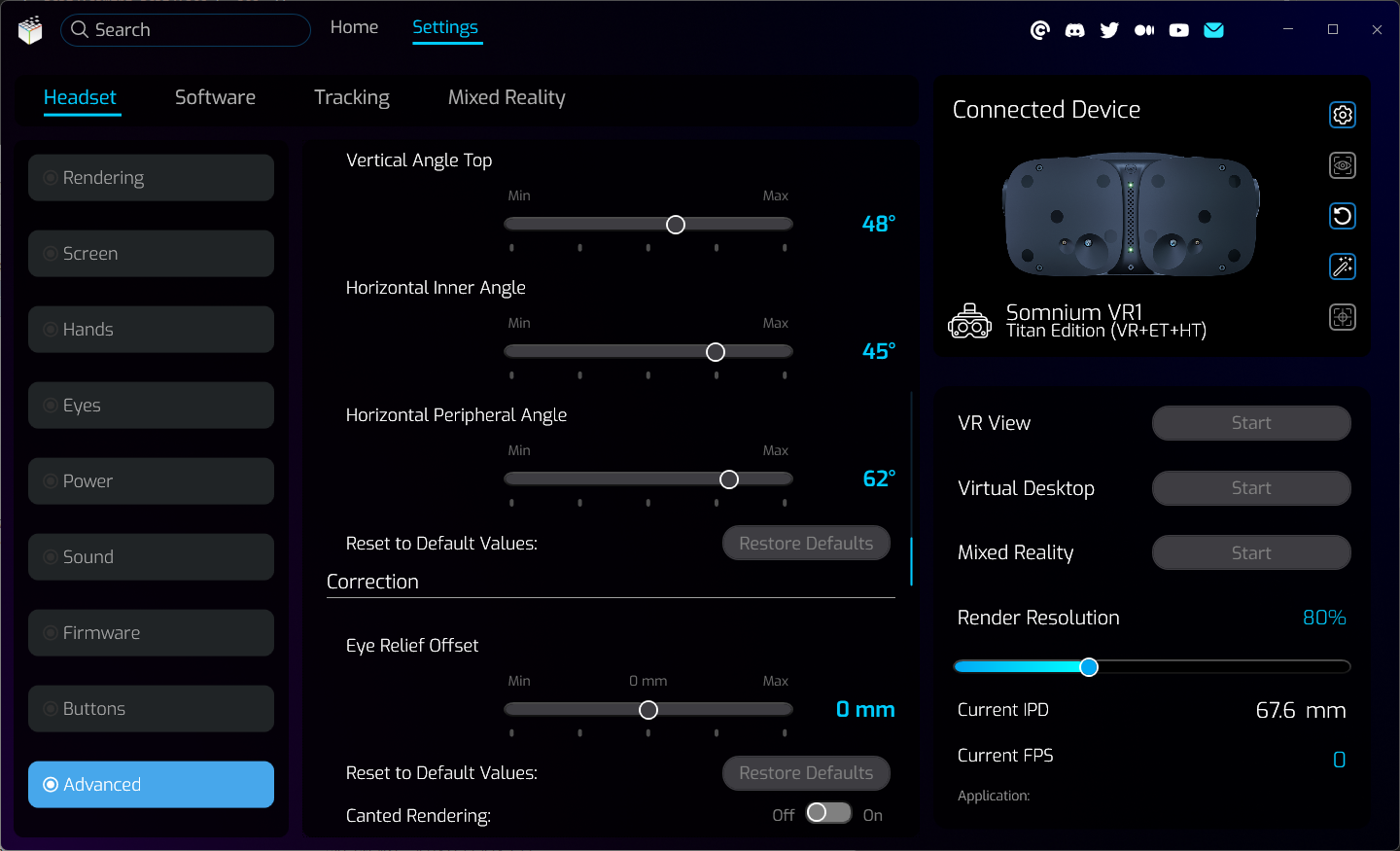

    • Vertical Angle Top
      • Can be used to change the top part of vertical field of view.
    • Horizontal Inner Angle
      • Can be used to change the horizontal field of view on the inner part (between the center and nose).
      • This value controls how much overlap there will be between images for left and right eye, so it doesn’t count to the total horizontal FOV value.
    • Horizontal Peripheral Angle
      • Can be used to change the horizontal field of view on the peripheral part (between the center and outer edge).
      • This value multiplied by 2 corresponds to the commonly used total horizontal FOV (so for example if Horizontal Peripheral is set to 62°, the total horizontal FOV is 124°).
    • Reset to Default Values
      • Allows resetting the Field of View options to their default values.

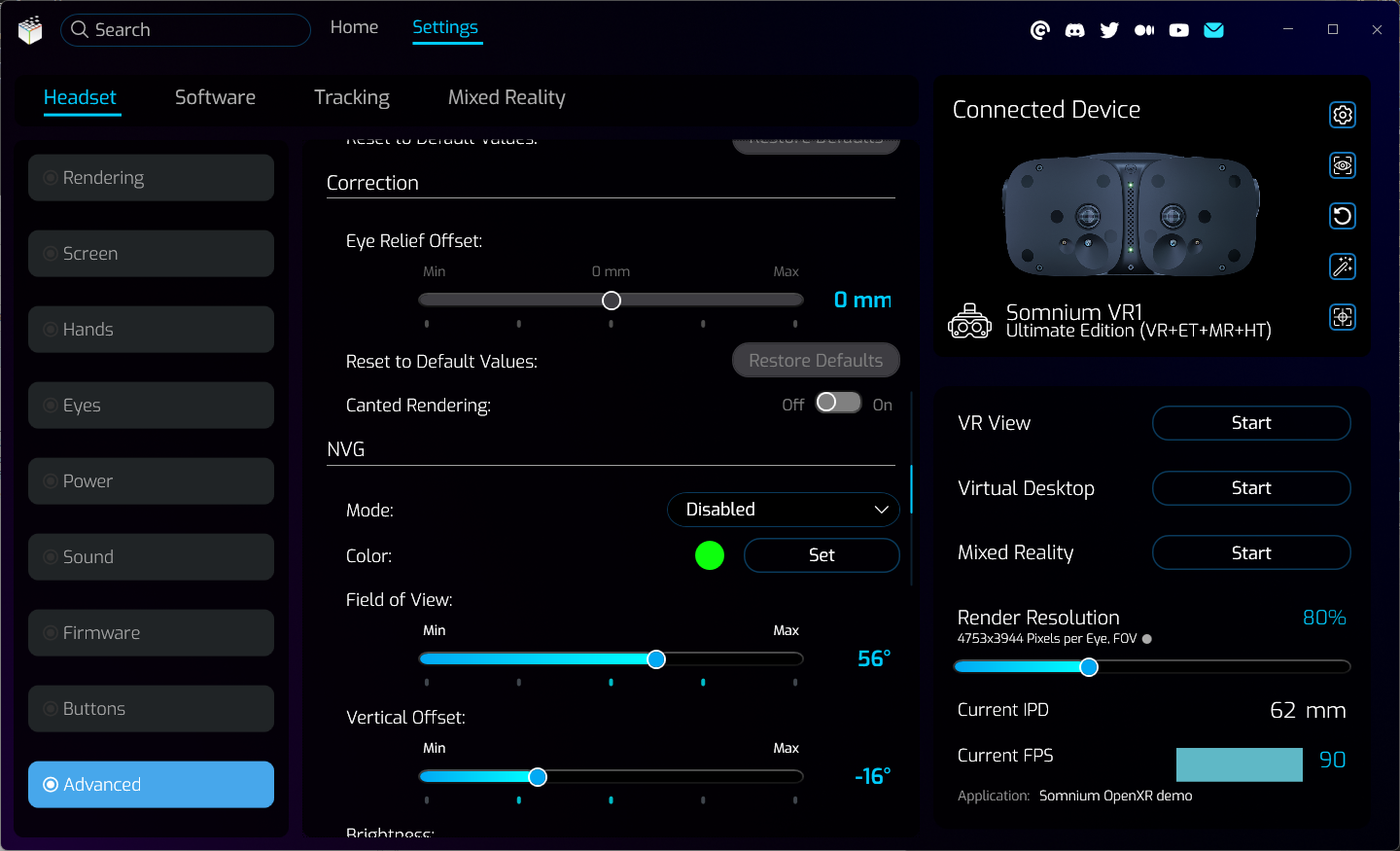

  • Correction
    • Eye Relief Offset
      • Can be used to set the distance offset between the lens and the eye (for most users the 0mm value will work the best).
    • Reset to Default Values
      • Allows resetting the Eye Relief Offset options to the default value.
    • Canted Rendering
      • Can be used to switch between canted (non-parallel) rendering and standard parallel rendering.
      • Make sure to restart the end VR application after changing this option.
      • Canted rendering will only work correctly in applications that support non-parallel cameras.
  • NVG
    • Mode
      • Can be used to control if the NVG overlay will be applied to the whole image (VR + MR) or only to the mixed reality image.
      • When this is set to Disabled, the NVG overlay will not be displayed.
    • Color
      • Can be used to change color of the NVG overlay.
    • Field of View
      • Can be used to change size of the middle part of the NVG overlay.
    • Vertical Offset
      • Can be used to change vertical position of the middle part of the NVG overlay.
    • Brightness
      • Can be used to change brightness of the middle part of the NVG overlay.
    • Background Brightness
      • Can be used to change brightness of the background part of the NVG overlay.
    • Ambient Light
      • Can be used to change level of additional light applied to the middle part of the NVG overlay.
    • Blur
      • Can be used to change level of blur in the middle part of the NVG overlay.
    • Noise
      • Can be used to change level of noise in the middle part of the NVG overlay.
    • Falloff
      • Can be used to change blending between the middle part and the background part of the NVG overlay.
    • Reset to Default Values
      • Allows resetting all NVG options to default values.
